BattenLok® HS

BattenLok® HS is a mechanically field-seamed, high strength structural standing seam roof system ideal for functionality with a wide array of coating options.

The BattenLok® HS panels have a 2” tall vertical seam and are available in both 12-inch and 16-inch widths. BattenLok® HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok® HS does not require a solid substructure for support. This panel is modeled after Steelox’s LRX and PRX roof panels.

Available in a profile suitable for curving in the field or through a third-party vendor contracted by the customer.  Please contact your District Sales Manager for order assistance.

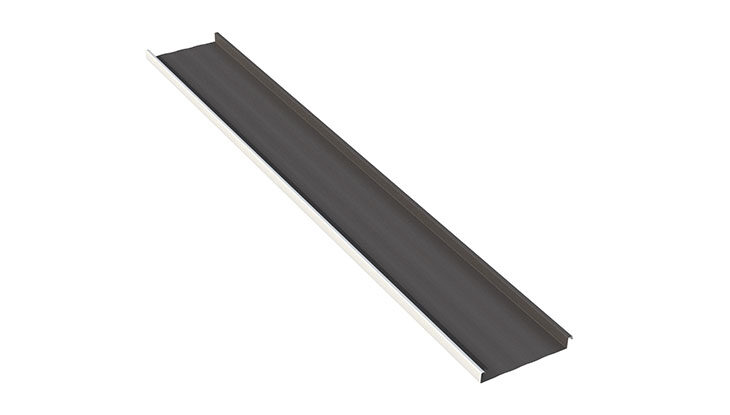

3D PANEL VIEW

Features

Coverage Width: 12", 16"

Minimum Slope : ½:12

Panel Attachment : Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)

Gauge : 24 (standard); 22 (optional)

Finishes : Smooth or Embossed; with Striations or Striations and Pencil Ribs

Coatings : Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Standard Colors:
