1.5” B-Deck - Roofing

B-Deck provides a reliable and economic structural base for roofing, while also contributing to structural stability against lateral wind and seismic forces when properly designed.

B-Deck is available in the below profile options:

• Nestable

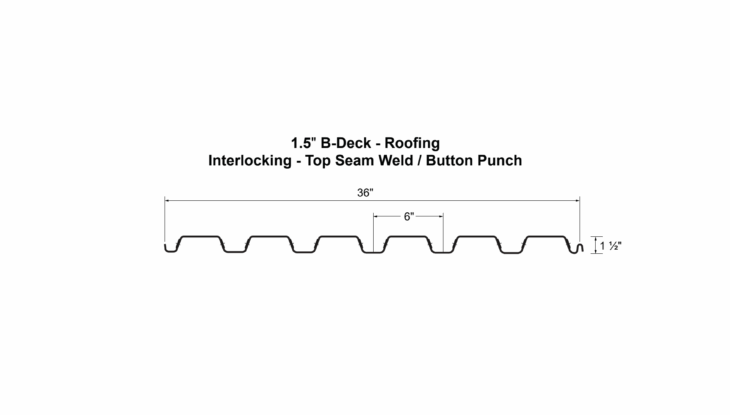

• Interlocking with Top Seam Weld/Button Punch

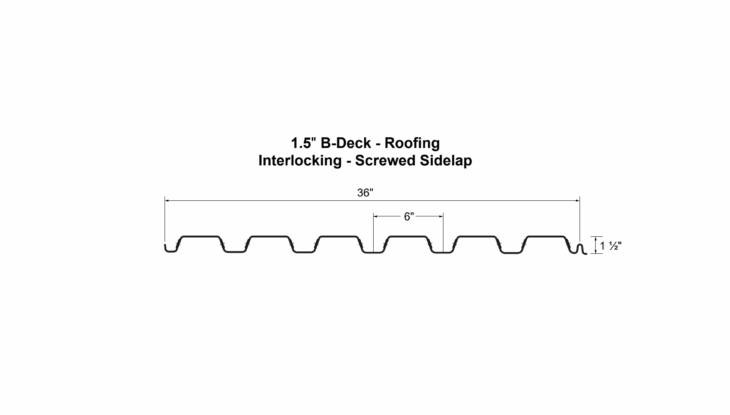

• Interlocking with Screwed Sidelap

Features

Coverage Width: 36”

Minimum Slope : ½:12

Panel Attachment : Exposed Fastening System

Gauge : 22, 20, 18

Finishes : Composite (embossed) or Non-Composite (smooth)

Substrate: Grade 50, G60 (standard), G90 (optional; requires special pricing)

Length: 3’-6” to 60’-0"

Rib Spacing : 6”

Rib Height : 1 1/2"
